L'ACOUSTICS SYVA
Syva is a patented Colinear Source system specifically tailored for medium-throw applications. It offers professional sound reinforcement for scenarios requiring high fidelity and sound pressure levels (SPL) with minimal visual disruption.
Enclose Syva
This innovative Syva enclosure houses six 5″ MF speakers, delivering a usable bandwidth extending to 87 Hz. Three 1.75″ HF diaphragm compression drivers are arranged and powered by DOSC waveguides following a J-shaped progressive curvature. Dubbed the ‘Colinear Source,’ this configuration produces a directivity pattern of H/V 140° x 26° (+5°/-21°). It is optimized to deliver ultra-wide horizontal coverage and an extended throw capacity.
Syva Low and Syva Sub Enclosures
The lower end of the Syva system is bolstered by the Syva Low enclosure, which integrates two K2 12″ drivers. It is designed to enrich Syva’s low-frequency acoustics, offering an impressive 9 dB contour and a base frequency limit reaching down to 40 Hz.
The Syva Sub enclosure further enhances Syva’s prowess in the sub-frequency domain. It packs a high-excursion 12″ driver featuring a KS28 woofer motor, extending the system’s reach to 27 Hz. Both the Syva Low and Syva Sub enclosures employ a bass-reflex design. They are outfitted with L-Vents to sustain high performance with minimized port noise and increased low-frequency efficiency.
Qualities and Applications
The distinctive Colinear Source delivers a line-length-directivity benefit and couples it with HF DOSC waveguides for a coherent vertical beam meticulously controlled to as low as 300 Hz. This directs the sound energy toward the rear of the audience space while ensuring consistent, smooth coverage upfront. With a convincing projection covering up to 35 meters and its vast horizontal dispersion, the Syva assures exceptional coverage for audience areas that are evenly distributed.
Crafted from premium birch and beech plywood, the Syva cabinet excels acoustically and features a sleek, slim design that easily integrates into various architectural styles. This makes Syva particularly suitable for acoustically demanding environments requiring a blend of intelligibility, elevated SPL, and comprehensive bandwidth.
For rental events, Syva is swift to deploy and straightforward to rig. Its outstanding throwing capabilities make it suitable for spacious settings like large ballrooms, where discretion and elegance are paramount.
DB Technologies VIO

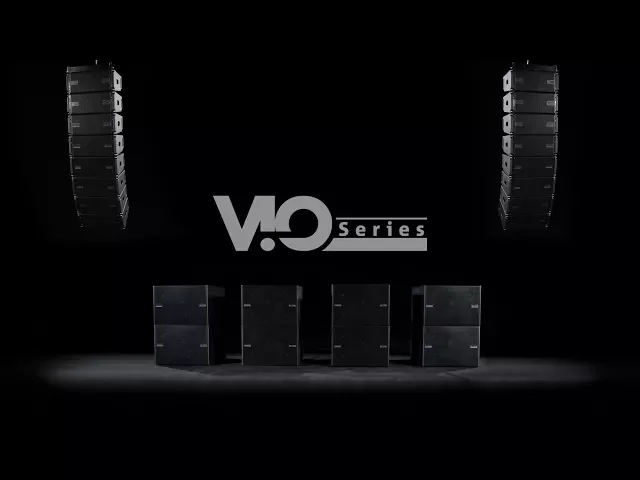

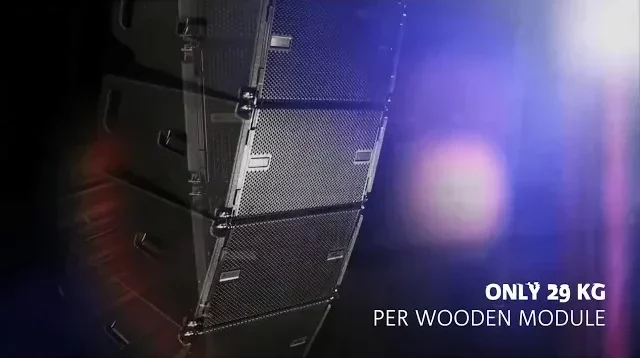

The VIO-L208/L210 is a 2-way active line-array module representing a breakthrough in the sound reinforcement field for medium to large indoor and outdoor live events. The VIO series combines cutting-edge technical innovation with meticulously optimized design to deliver superior sound within an efficiently compact mechanical structure, ensuring ease of installation.
Key Features
- Acoustic design with an optimized front panel, which smooths frequency response for precise audio coverage
- Wooden cabinet with a polyuria finish to increase surface durability
- A 3-point integrated rigging system for quick assembly/disassembly
- A high-performance, silent 900 W RMS amplifier with no need for ventilation, reaching an SPL peak of up to 133.5 dB
- Advanced 56-bit DSP sound processing
- ADC Floating technology, developed for perfect isolation from interference, like noise or hums, of the audio input
- Simplified daisy chains for optimized wiring
- On-board RDnet control with predictive and remote management software (DB Technologies Composer, EASE, EASE Focus 3, DB Technologies Network, Aurora Net)
VIO-S218 Subwoofer
The VIO-S218 is a professional subwoofer that complements the VIO line-array systems. This setup is ideal for achieving optimal acoustic performance over an extended frequency range, allowing for an acoustically complete solution.
Features
- Two 18″ woofers (voice coil: 4”) in a semi-horn-loaded configuration for potent bass
- Two D class amplifiers (2 x 1600 W RMS) for substantial power handling
- Integrated presetting ensures its configurability and ergonomics when used with other VIO-S218 units.
